W11 mechanical 3 rollers symmetrical rolling machine

Home / Product center / 3-Rollers Mechanical Rolling Machine / W11 mechanical 3 rollers symmetrical rolling machine

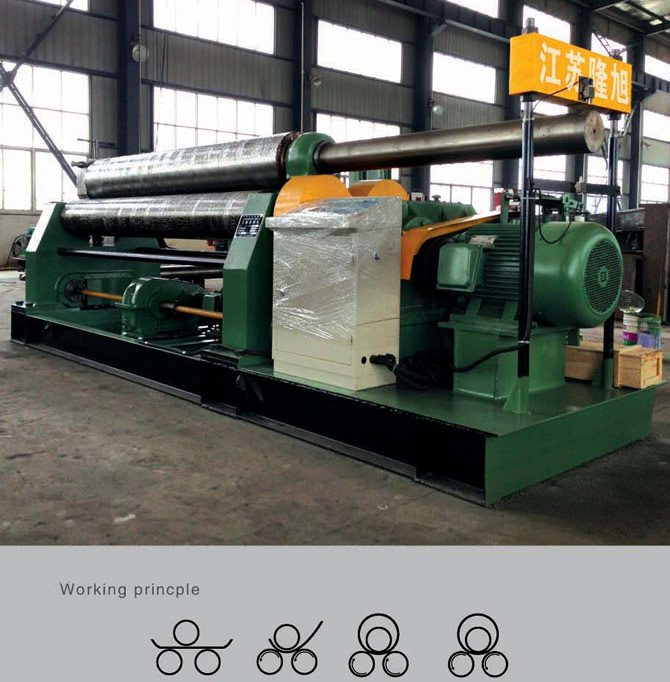

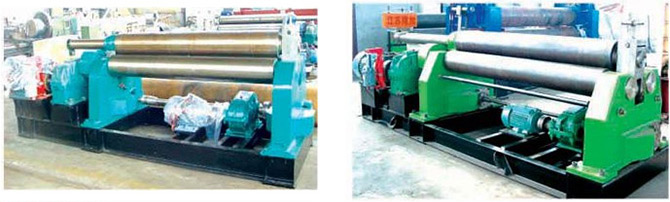

W11 mechanical 3 rollers symmetrical rolling machine




PERFORMANCE FEATURES:
The machine adopts 3-roller symmetrical structure with the upper roller moving vertically in the center between the two lower rollers.
Which is achieved through the lead screw the two lower rollers rotates and provide the plate materials with torque.
Through the engagement of the output gear of the moderator with the gear of the lower rollers.
Technical parameter:

規(guī)格型號(hào) Specification 最大卷板厚度 Max. thickness of coiled  plate (mm) 最大卷板寬度 Max. widthof coiled  plate(mm) 板材屈服極限 Yielding limit ofsheet metal(Mpa) 卷板速度 Coiling speed (m/min) 上輥直徑 Diameter of upper roller (mm) 主電機(jī)功率 Motor power (kW)
4×1500 4 1500 245 5 150 3
6×1500 6 1500 245 5 160 4
6×2000 6 2000 245 4.5 170 5.5
6×3200 6 3200 245 4.5 220 7.5
8×2000 8 2000 245 4.5 185 5.5
8×2500 8 2500 245 4.5 240 7.5
12×2000 12 2000 245 4.5 240 7.5
12×2500 12 2500 245 4.5 260 11
12×3000 12 3000 245 4 280 11
16×2000 16 2000 245 4 260 11
16×2500 16 2500 245 4 280 15
16×3200 16 3200 245 4 340 18.5
20×2000 20 2000 245 4 280 15
20×2500 20 2500 245 4 340 18.5
25×2000 25 2000 245 4 330 18.5
25×2500 25 2500 245 4 370 22
30×2500 30 2500 245 4 420 30
30×3000 30 3000 245 4 450 37
